China BVEM brand 500-800 Mm Hydraulic Vibroflot for Heavy-Duty Pile Driving Needs and Max Diameter

Product Description:

The Hydraulic Vibroflot is a cutting-edge product designed to provide effective ground improvement solutions for various construction projects. With a maximum diameter range of 500-800 mm, this versatile equipment is capable of handling a wide range of soil conditions with precision and efficiency.

This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate a strong horizontal excitation force. It has significant core advantages: large output torque, wide speed regulation range, and the ability to achieve stepless speed regulation. It can easily cope with large impact loads, providing both work efficiency and stable power support for vibroflotation construction.

One of the key advantages of the Hydraulic Vibroflot is its ability to share hydraulic power systems with other compatible equipment, streamlining operations and maximizing efficiency on the job site. This integrated approach not only reduces overall energy consumption but also enhances the overall performance of the ground improvement process.

In conclusion, the Hydraulic Vibroflot is a state-of-the-art solution for soil densification and ground improvement projects. With its advanced features, compact design, and remote control capability, this equipment offers unmatched versatility and efficiency in a wide range of construction applications. Whether tackling small-scale projects or large infrastructure developments, the Hydraulic Vibroflot is a reliable and effective tool for achieving optimal soil compaction and enhancing soil relative density.

Features:

• Product Name: Hydraulic Vibroflot
• 600-3000 rpm stepless speed regulation
• It can continuously output large excitation force and high power, ensuring stable and continuous construction process, and effectively improving pile forming efficiency and project quality.

       It does not require a water-cooled motor, breaking through the dependence of traditional construction on water sources, realizing vibroflotation dry method environmental protection construction

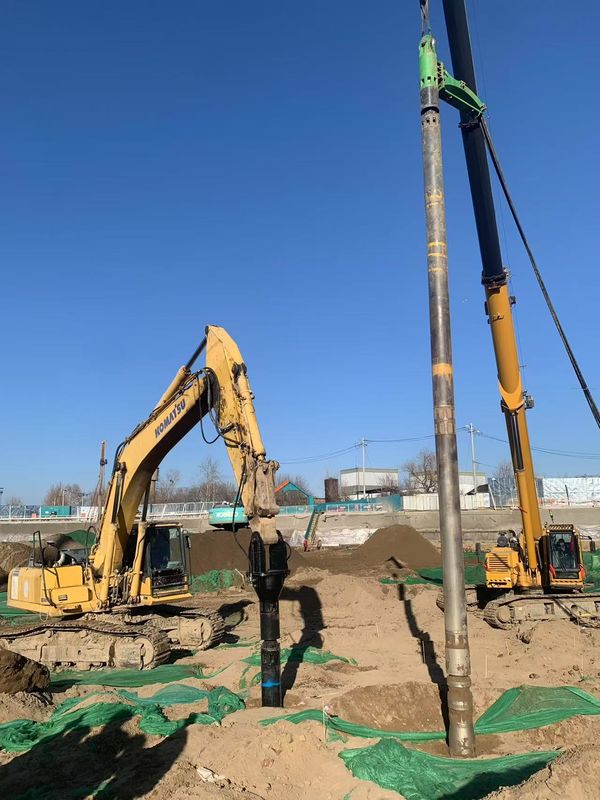

       It has outstanding high adaptability and can be flexibly mounted on various construction site equipment such as special pump stations, rotary drilling rigs, excavators, and pile frames, adapting to the equipment configuration needs of different construction scenarios and reducing equipment investment costs.

Technical Parameters:

Eccentric moment of vibroflot:  29 Nm

Rated speed of vibroflot:  600-2600 r/min

Rated power of vibroflot:  105 kW

Amplitude of vibroflot:  ±4.6 mm

Hydraulic flow rate:  208 lpm

Maximum working pressure:  350bar

Maximum excitation force:  214kN

Weight of vibroflot:  935kg

Outer diameter of vibroflot:  350 mm

Outer diameter with water channel:  568 mm

Pile forming diameter:  500-800 mm

Applications:

BVEM has always been oriented to the diversified needs of customers, and is deeply engaged in the diversified R&D and innovation of vibroflot equipment: from electric vibroflots to hydraulic vibroflots, it has realized the iterative upgrading of driving methods; from orifice filling vibroflots to bottom discharge vibroflots, it has accurately adapted to the core needs of different construction technologies; it has also broken through the limitations of equipment mounting scenarios, covering all kinds of construction scenarios.

The BVEM BJVH-350-105 hydraulic vibroflot is a vivid practice of this concept. It provides more targeted professional solutions for customers' vibroflotation projects of different scales and working conditions, truly realizing all-round empowerment from equipment performance to construction efficiency.
